Rs 10

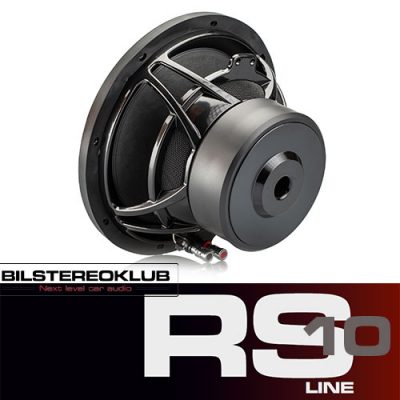

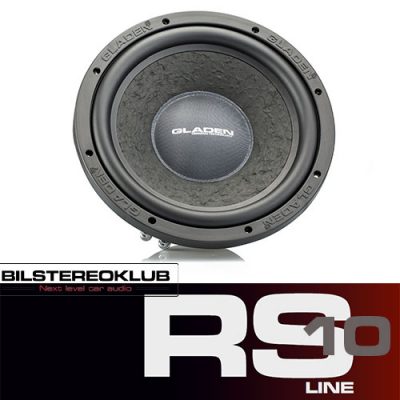

Overview Gladen RS 10

Allround subwoofer
Cast aluminum basket
Black nomex spider
Scooped paper cone
Glass fiber dust cap

Technical data Gladen RS 10
Material:

Cone:
Paper

Spider:
Nomex

Surround:
Rubber

Coil former:
Fiberglass

Basket:
Aluminum

Dust Cap:
Fiberglass

Specifications:

DC resistance (Rdc):
3,5 Ω

Nominal impedance (ZN):
4 Ω

Resonance frequency (fs):
31,2 Hz

Voice coil diameter:
2 inch

Mechanical Q factor (Qms):
5,64

Electrical Q factor (Qes):
0,35

Total Q factor (Qts):
0,33

Moving mass (Mms):
96,5 g

Effective piston area (Sd):
366 cm²

Mechanical resistance (Rms):
5,1 kg/s

Compliance (Cms):
0,25 mm/N

Force factor (BL):
14,1 Tm

Equivalent air volume (Vas):
51 dm³

SPL 2,83V/1m:
91,5 dB
