M-LINE 10 VB

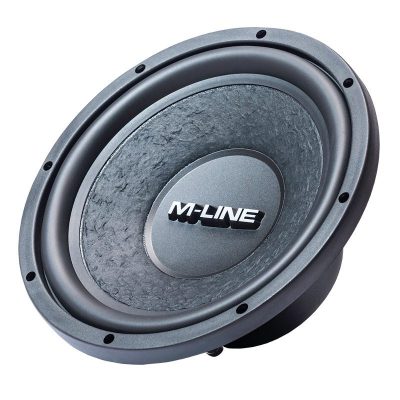

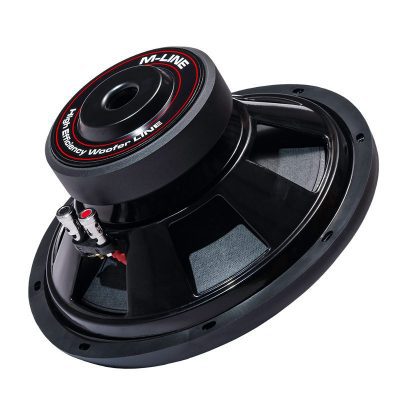

Overview Gladen M-Line M10

Woofer with high efficiency
Black nomex spider
Scooped paper cone
PP dust-cap

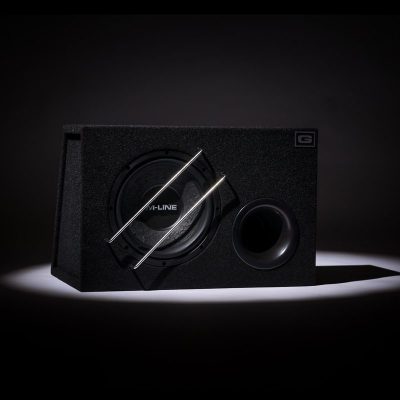

Also available as cabinet subwoofer: GA-M-10VB

Technical Data Gladen M-Line M10
Material:

Cone:
Paper

Spider:
Nomex

Surround:
Rubber

Coil former:
Aluminium

Basket:
Steel

Dust Cap:
PP

Specifications:

DC resistance (Rdc):
3,2 Ω

Nominal impedance (ZN):
4 Ω

Resonance frequency (fs):
31,3 Hz

Voice coil diameter:
2,0 inch

Mechanical Q factor (Qms):
5,51

Electrical Q factor (Qes):
0,40

Total Q factor (Qts):
0,37

Moving mass (Mms):
67,2 g

Effective piston area (Sd):
366 cm²

Mechanical resistance (Rms):
2,3 kg/s

Compliance (Cms):
0,34 mm/N

Force factor (BL):
10,2 Tm

Equivalent air volume (Vas):
63,6 dm³

SPL 2,83V/1m:
92,1 dB
