SQX12-DUALEX Subwoofer dual 12″ 1200rms watt

DKK6.950,00 Inkl. Moms

1 dual kasse m. enheder

12”/30cm
900/600 Watt
4 ohm impedance
3” voice coil
Vented box 50 l
or sealed box 32 l

World Record Class Climber B
May 27th 2012

European Champion
Bassrace
Vice World Champion
Bassrace

OBS : Custom kasse.
Dette produkt fremstilles efter bestilling , forvent leveringstid.
Og der er ingen returret, pga det fremstilles til ordre.

Add to wishlist
Varenummer (SKU): SQX12-DUALEX Kategorier: , , , Brand:
Vægt 30 kg

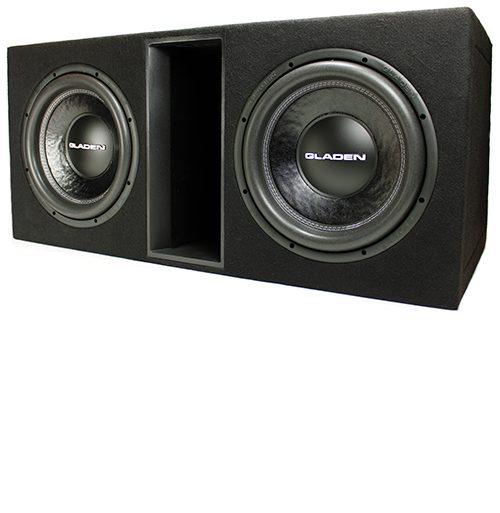

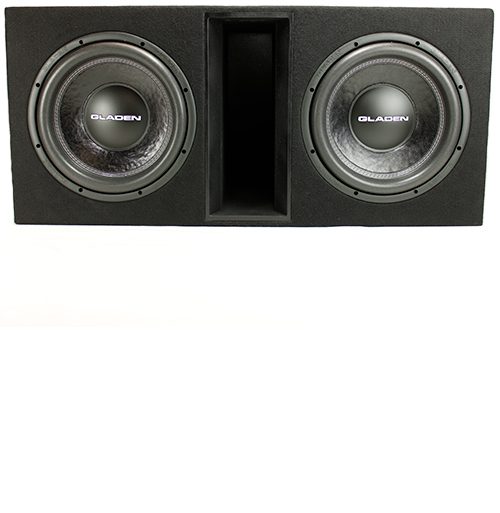

Overview GLADEN SQX 12 Dual subkasse.

High performance subwoofer
900 / 600 Watts power handling
Cast aluminum basket
4″ voice coil
Black nomex spider
Double centering spider
Sewn on strands
Pressed paper diaphragm
PP dust-cap with 3D logo

Technical data GLADEN SQX 12
Material GLADEN SQX 12:

Cone:
Paper

Spider:
Nomex

Surround:
Foam

Coil former:
Aluminium

Basket:
Aluminum

Dust Cap:
PP

Specifications GLADEN SQX 12:

DC resistance (Rdc):
3,2 Ω

Nominal impedance (ZN):
4 Ω

Resonance frequency (fs):
36,7 Hz

Voice coil diameter:
3 inch

Mechanical Q factor (Qms):
5,07

Electrical Q factor (Qes):
0,44

Total Q factor (Qts):
0,40

Moving mass (Mms):
167,7 g

Effective piston area (Sd):
490 cm²

Mechanical resistance (Rms):
7,6 kg/s

Compliance (Cms):
0,11 mm/N

Force factor (BL):
16,8 Tm

Equivalent air volume (Vas):
40,9 dm³

SPL 2,83V/1m:
91,5 dB
